Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB

    Buy cheap Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB from wholesalers

    Buy cheap Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB from wholesalers
    • Buy cheap Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB from wholesalers
    • Buy cheap Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB from wholesalers
    • Buy cheap Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB from wholesalers
    • Buy cheap Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB from wholesalers

    Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB

    Ask Lasest Price
    Brand Name : solarvertech/OEM
    Model Number : TFS2500DR
    Certification : CE ROHS E8
    Price : 272.8
    Payment Terms : T/T, Western Union
    Supply Ability : 10000
    Delivery Time : samples in 5 working day
    • Product Details
    • Company Profile

    Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB

    2500w off-grid pure sine wave power inverter
    Description:

    Pure sine wave inverter is the pure sine wave output power.Pure sine wave inverter is applied to the vehicles,boat,electronic devices,home and office applications,RV etc. for various places where power conversion is required.


    Feature:
    .Input voltage 12/24/48V DC
    .Output voltage 220-240V/100-127V AC
    .Output frequency: 50/60Hz
    .Output USB port: 5V 2.1A
    .Remote controller function: accept for normal remote controller and LCD remote
    controller.
    .Load and thermal control fan
    .Output socket: USA, Australia, Universal, UK, France, German , Brazil, South Africa,Argentina , GFCI, Universal types etc.optional.

    pure sine wave inverter specifications:

    MODEL
    FS2500-112

    FS2500-124

    FS2500-148
    FS2500-212
    FS2500-224
    FS2500-248
    Output
    AC Voltage
    100/110/120VAC
    220/230/240VAC
    Rated Power
    2500W
    Surge Power
    Load 120~150%(3min.);3000W(3sec; resistive)
    Waveform
    Pure Sine Wave(THD<3%)
    Frequency
    50/60Hz ±0.05%
    AC Regulation
    ±5%
    ±10%
    Power Factor Allowed
    COSθ-90°~COSθ+90°
    Standard Receptacles
    USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
    LED Indicator
    Green for power on, red for faulty status
    USB port
    5V 2.1A
    5V 2.1A
    ------
    5V 2.1A
    5V 2.1A
    ------
    LCD display
    voltage, power, protection status ( optional)
    Remote control function
    default
    Remote controller
    CR80/CRD80 optional
    Input
    No Load Current Draw
    ≤1.1A
    ≤0.80A
    ≤0.70A
    ≤1.1A
    ≤0.80A
    ≤0.70A
    DC Voltage
    12VDC
    24VDC
    48VDC
    12VDC
    24VDC
    48VDC
    Voltage Range
    10.5~15VDC
    21~30VDC
    42~60VDC
    10.5~15VDC
    21~30VDC
    42~60VDC
    Efficiency(Typ.)
    89%~93%
    Fuse
    40A×6
    20A×6
    10A×6
    40A×6
    20A×6
    10A×6
    Remote Control
    Function (optional)
    Protection
    BAT. Low Alarm
    10.5±0.5VDC
    21±1.0VDC
    42±2.0VDC
    10.5±0.5VDC
    21±1.0VDC
    42±2.0VDC
    BAT. Low Shutdown
    10±0.5VDC
    20±1.0VDC
    40±2.0VDC
    10±0.5VDC
    20±1.0VDC
    40±2.0VDC
    Over Load
    Shut down output voltage , restart to recover
    Over Voltage
    15.5±0.5VDC
    31±1.0VDC
    62±2.0VDC
    15.5±0.5VDC
    31±1.0VDC
    62±2.0VDC
    Over Temperature
    Shut down output voltage , recover automatically after temperature goes down
    Output Short
    Shut down output voltage , restart to recover
    DC Input Reverse Polarity
    By fuse
    Earth Fault
    Shut off o/p when the load has electrical leakage
    Soft Start
    Yes, 3-5 Seconds
    Environment
    Working Temp.
    0~+50℃
    Working Humidity
    20~90%RH non-condensing
    Storage Temp.&Humidity
    -30~+70℃,10~95%RH
    Safety & EMC
    Safety Standards
    Certified UL 458(only for "GFCI" receptacles)
    Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
    Isolation Resistance
    I/P-O/P:100M Ohms/500VDC
    EMI Conduction &
    Radiation
    Certified FCC class A
    Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
    EMS Immunity
    ------
    Certified IEC61000-4-3, IEC61000-4-6
    E-MARK
    ------
    Certified ECE RIO.05:2014

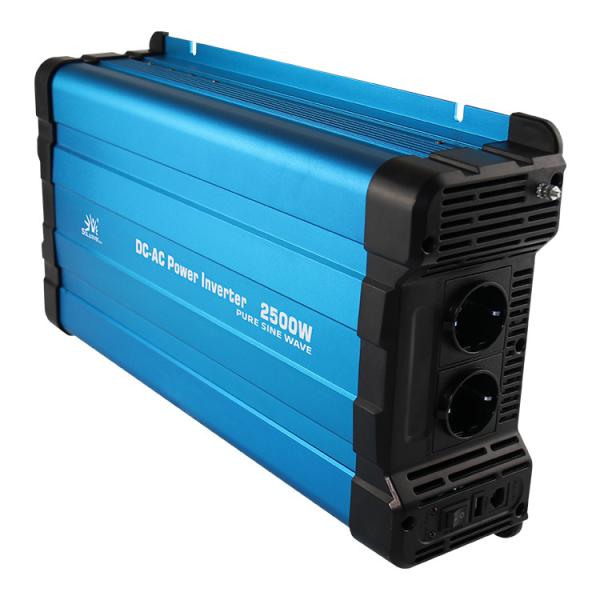

    Product picures:

    Stable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USBStable Off Grid Pure Sine Wave Power Inverter Single Output With 2.1A USB

    About solarway:

    Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
    sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
