| Brand Name : | SolarverTech/OEM logo |
| Model Number : | SLW-350W |
| Certification : | CE, ISO, TUV, Rohs |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 500000 Watt/Watts per Week Mono solar panels |
| Delivery Time : | 1-10 PCS 7days, 11-100PCS 15 days, 101-300 PCS 25 days |
Photovoltaic MONO Solar Panels 350W For Homes
Parameters:
| Technical Parameter | ||||
Rated Output (Wp) | Opencircuit voItage (Voc) | Maximum Power voItage (Vm) | Short circuit current (Isc) | Maximum Power current (Im) |
| 310 | 45.57 | 36.76 | 8.69 | 8.43 |
| Temperature Coefficient ofVoc | -0.38%/℃ | CeII(mm) | 156*156 | |
| Temperature Coefficient of lsc | + 0.04%/℃ | Weight(kg) | ||

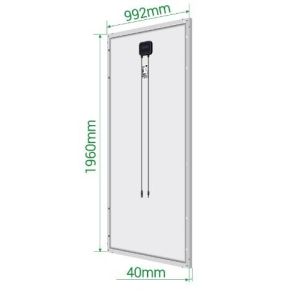

| Temperature Coefficient of Power | - 0.47%/℃ | Dimensions(LxWxH) (mm) | 1960*992*50 | |
| NOCT | 45±3℃ | Cable Cross Section Size (mm) | 2*4 | |
| Working Temperature Range | - 40℃~+85℃ | No.of Cells and Connections | 72(6*12) | |
| Maximum Permitted Load | 5400Pa | No.of Diodes | 3*20SQ | |
| Maximum Series Fuse Rating(A) | 20 | Monolithic power | 4.08w-4.51w | |
| Maximum System Voltage(V) | 1000 | The efficiency of single chip | 17.11%-18.91% | |
| Standard Test Conditions | 1000W/m2;25℃;AM1.5 | The packing way | 23pcs/carton | |


|
